Mitsubishi Pajero Mini 1998-2012 Hydraulic Power Steering Rack

Hydraulic Power Steering Rack for Mitsubishi Pajero Mini 1998-2012

When your Mitsubishi Pajero Mini 1998-2012 starts showing signs of steering wear, replacing the hydraulic steering rack with a quality aftermarket unit is the most cost-effective solution.

Across the 1998-2012 production run, the Mitsubishi Pajero Mini 1998-2012 was equipped with several steering system variants depending on whether the vehicle was LHD or RHD, and whether it had a manual or power steering setup. This hydraulic steering rack with OE reference MR319766 matches the power steering configuration. Always verify the number on your existing part before purchasing.

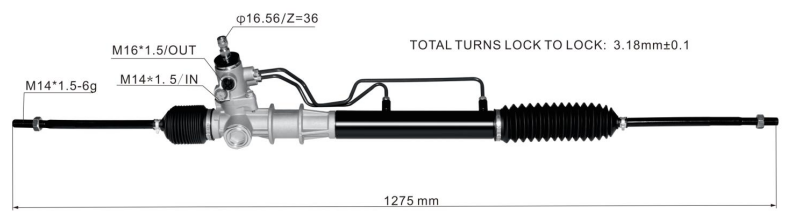

Technical Data

Compatible Vehicles

This hydraulic steering rack is designed for the following application:

• Mitsubishi Pajero Mini 1998-2012 (1998-2012) — LHD configuration

To confirm this is the correct part for your Mitsubishi Pajero Mini 1998-2012, verify that the OE number on your existing hydraulic steering rack matches MR319766. This number is typically stamped on a metal tag attached to the housing or engraved directly into the component body.

Note: Mitsubishi Pajero Mini 1998-2012 vehicles produced in different markets may use different steering system configurations. Always cross-reference the OE number for guaranteed fitment.

Common Failure Symptoms

The Mitsubishi Pajero Mini 1998-2012 is generally a robust vehicle, but the hydraulic steering rack is a high-wear component that will eventually show its age. Watch for these indicators:

• Fluid leaks: Reddish or brown power steering fluid pooling under the front of the vehicle, usually near the driver-side wheel well. On the Mitsubishi Pajero Mini 1998-2012, leaks commonly originate from the rack end seals where the inner tie rods connect.
• Uneven tire wear: The front tires on the Mitsubishi Pajero Mini 1998-2012 show accelerated wear on one edge, a telltale sign that the toe angle is off due to steering rack play.
• Steering wheel vibration: Vibration felt through the steering column, often worsening at specific speeds. On the Mitsubishi Pajero Mini 1998-2012, this can be mistaken for wheel balance issues but actually originates from a worn rack.
• Grinding or clunking noises: A metallic clunk when driving over bumps or a grinding noise during turns indicates worn internal bushings or gear teeth in the Mitsubishi Pajero Mini 1998-2012's steering rack.
• Vehicle pulling to one side: Even after a wheel alignment, the Mitsubishi Pajero Mini 1998-2012 drifts left or right, suggesting uneven internal resistance in the steering rack assembly.

If your Mitsubishi Pajero Mini 1998-2012 exhibits any combination of these symptoms, have the hydraulic steering rack inspected by a qualified mechanic. Continuing to drive with a compromised steering system risks further damage and poses a serious safety hazard.

Steering System Overview for the Mitsubishi Pajero Mini 1998-2012

The Mitsubishi Pajero Mini 1998-2012 (1998-2012) uses a Hydraulic Power Steering Rack system that is integral to the vehicle's handling characteristics. The steering system on this model consists of several interconnected components: the steering wheel and column transfer driver input to the hydraulic steering rack, which converts rotational motion into the lateral movement needed to turn the front wheels. The inner and tie rod ends connect the hydraulic steering rack to the steering knuckles, while the power steering fluid (in hydraulic systems) or electric motor (in EPS systems) provides the assist needed to reduce steering effort.

On the Mitsubishi Pajero Mini 1998-2012, the hydraulic steering rack is mounted to the front subframe and sits behind the engine, protected by a splash shield. Over time, road debris, moisture, and thermal cycling take their toll on the seals and internal components. Most Mitsubishi Pajero Mini 1998-2012 owners can expect the original hydraulic steering rack to last between 100,000 and 200,000 kilometers, depending on driving conditions and maintenance habits.

Regular inspection of the steering system on your Mitsubishi Pajero Mini 1998-2012 can catch problems early. We recommend having the hydraulic steering rack checked during every tire rotation or brake service. A mechanic can detect early seal leaks, boot damage, and excessive play before they lead to more expensive repairs or unsafe driving conditions.

Why Choose KITLAMT for Your Mitsubishi Pajero Mini 1998-2012

Unlike many aftermarket suppliers, KITLAMT does not simply re-box generic parts. Each hydraulic steering rack for the Mitsubishi Pajero Mini 1998-2012 is tooled specifically for that application, with mounting points, thread pitches, and spline counts verified against the original OE unit. This attention to detail means our parts fit exactly as the factory intended.

• OE-specification manufacturing — every hydraulic steering rack matches the original Mitsubishi Pajero Mini 1998-2012 unit in fit and function
• 12-month warranty — comprehensive coverage against manufacturing defects
• Global shipping — express delivery to 200+ countries via DHL, FedEx, and UPS
• Technical support — our team can help verify compatibility and troubleshoot installation issues
• Competitive pricing — direct from manufacturer pricing with no middleman markup

Installation Guide

Replacing the hydraulic steering rack on a Mitsubishi Pajero Mini 1998-2012 (1998-2012) is a job best left to a qualified mechanic, but understanding the process helps you communicate effectively with your repair shop and verify the work is done correctly.

1. Step 1: Lift the front of the Mitsubishi Pajero Mini 1998-2012 and secure it on jack stands. Remove both front wheels to access the steering components.
2. Step 2: Disconnect the outer tie rod ends from the steering knuckles using a tie rod separator. Mark the position of the tie rods on the old rack to help with alignment later.
3. Step 3: Place a drain pan beneath the steering rack area. Disconnect the high-pressure and return hydraulic lines from the rack. Be prepared for power steering fluid to drain.
4. Step 4: Remove the mounting bolts securing the steering rack to the subframe. On the Mitsubishi Pajero Mini 1998-2012, there are typically 2-4 bolts accessible from underneath.
5. Step 5: Carefully maneuver the old steering rack out through the wheel well or subframe opening. On some Mitsubishi Pajero Mini 1998-2012 variants, you may need to slightly lower the subframe on one side for clearance.
6. Step 6: Transfer the inner tie rods and boots from the old rack to the new KITLAMT unit if they are not pre-installed. Ensure the boots are properly seated to prevent contamination.
7. Step 7: Install the new KITLAMT hydraulic steering rack in the reverse order of removal. Torque all mounting bolts to the manufacturer's specification.
8. Step 8: Reconnect the hydraulic lines using new O-rings. Fill the power steering reservoir with the recommended fluid for the Mitsubishi Pajero Mini 1998-2012.
9. Step 9: Bleed the system by turning the steering wheel lock-to-lock with the engine running, checking for leaks at each connection point.
10. Step 10: A four-wheel alignment is mandatory after replacing the hydraulic steering rack on the Mitsubishi Pajero Mini 1998-2012. This ensures proper toe settings and prevents premature tire wear.

Important: After installing the new hydraulic steering rack on your Mitsubishi Pajero Mini 1998-2012, always perform a four-wheel alignment and verify there are no fluid leaks before driving the vehicle on public roads.

Frequently Asked Questions

Q: Will this hydraulic steering rack fit my Mitsubishi Pajero Mini 1998-2012 exactly?

A: Yes, this hydraulic steering rack is designed as a direct bolt-on replacement for the Mitsubishi Pajero Mini 1998-2012 (1998-2012). It matches OE reference MR319766 in all critical dimensions including mounting points, spline count, thread pitch, and overall length. No modifications or adapters are needed for installation.

Q: How does KITLAMT quality compare to the original Mitsubishi part?

A: KITLAMT hydraulic steering rack units are manufactured to the same dimensional tolerances and material specifications as the original equipment. We use equivalent-grade alloy steel, the same seal specifications, and pressure-test every unit before shipping. The main difference is the price — KITLAMT parts are typically 40-60% less expensive than dealer parts.

Q: What warranty comes with this hydraulic steering rack?

A: Every KITLAMT hydraulic steering rack is covered by a 12-month warranty against manufacturing defects. If the part fails under normal use within the warranty period, we will ship a replacement at no charge. Warranty claims are processed within 48 hours of notification.

Q: Can I install this hydraulic steering rack myself on my Mitsubishi Pajero Mini 1998-2012?

A: While experienced home mechanics with a full tool set can complete this job, we strongly recommend professional installation. The Mitsubishi Pajero Mini 1998-2012's steering system is a safety-critical assembly, and improper installation can result in dangerous driving conditions. A wheel alignment is also required after installation, which requires professional equipment.

Q: How long will this hydraulic steering rack last on my Mitsubishi Pajero Mini 1998-2012?

A: Under normal driving conditions, a KITLAMT hydraulic steering rack on the Mitsubishi Pajero Mini 1998-2012 should last 100,000-150,000 kilometers or more. Longevity depends on driving habits, road conditions, and whether the steering boots are kept in good condition. Avoiding full-lock steering hold and maintaining proper fluid levels will maximize lifespan.
